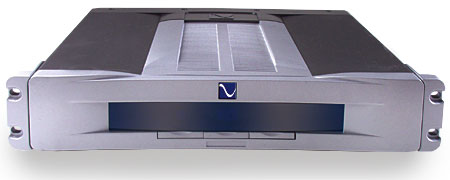

PS Audio Power Plant Premier AC Regenerator Specifications

Sidebar 1: Specifications

Description: AC regenerator. Nominal input voltage: 105–135VA US, 215–245VAC Europe/Asia. Maximum continuous load: 1200VA US, 1500VA Europe/Asia. Dynamic power delivery: 0.5s, >3600VA US, 5000VA Europe/Asia. Voltage regulation: ±0.5V US, 1VAC Europe/Asia. Output distortion, input 220–240VAC: 1200VA resistive load <0.9%. Output distortion, 230V: 240VAC, 1200VA reactive load <0.9%. Output distortion, input 110–130VAC: 1200VA resistive load, <0.5%. Output distortion, input 110–130VAC: 1200VA reactive load, <0.5%. Output impedance: <0.015 ohm. Noise reduction (all zones): 100kHz–2MHz, >80dB. Efficiency at 1200VA: resistive load, >80%; reactive load, >85%. Input frequency: 45–65Hz. Undervoltage limit: 90VAC US, 175VAC Europe/Asia. Overvoltage limit: 145VAC US, 275VAC Europe/Asia. Protection modes: L-N, L-G, N-G. Energy dissipation: 2160J US, 2142J Europe/Asia. Peak current surge: 144,000A US, 84,000A Europe/Asia. Maximum voltage surge: 6kV. Clamp level: 330V US, 800V Europe/Asia. Telco protection: 320J, 395V. Coax insertion loss: <1dB. DC trigger configuration: tip positive. DC trigger voltage: 5–15V DC.
Dimensions: 17" (435mm) W by 4" (100mm) H by 16.5" (425mm) D. Weight: 35 lbs (15.9kg).
Serial Number Of Unit Reviewed: PPP-BO-7K0226.
Price: $2195. Approximate number of dealers: 147.
Manufacturer: PS Audio, 4826 Sterling Drive, Boulder, CO 80301. Tel: (720) 406-8946. Fax: (720) 406-8967. Web: www.psaudio.com.
