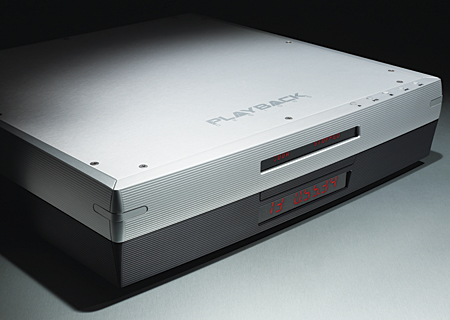

Playback Designs MPS-5 SACD/CD player Specifications
Description: Single-box, fixed-output, two-channel (upgradable to multi-channel with an outboard DAC) SACD player with remote control. Formats played: SACD, CD, CD-R, CD-RW. D/A conversion: 1-bit/5.6448MHz DSD. Analog outputs: 1 pair each RCA (unbalanced), XLR (balanced), BNC (50 ohm). Digital outputs: AES/EBU, Proprietary Playlink Data/Clock (proprietary optical links). Digital inputs: AES/EBU (XLR), S/PDIF coax, S/PDIF TosLink, USB (limited to 48kHz). RS-232 and USB control ports. Maximum analog output levels: 4V RMS at 1kHz (XLR), 2V RMS at 1kHz full level (RCA, BNC), SACD and CD. Frequency response: not specified. Channel separation: not specified. Dynamic range: 140dB. THD: not specified. Power consumption: 100W.
Dimensions: 17.1" (435mm) W by 3.5" (98mm) H by 16.7" (423mm) D. Weight: 29 lbs (13kg).
Serial Number Of Unit Reviewed: 5038.
Price: $15,000. Approximate number of dealers: 8.
Manufacturer: Playback Designs, 4160 SW Greenleaf Drive, Portland, OR 97221. Tel: (503) 221-0465. Web: www.playbackdesigns.com. US distributor: Blue Light Audio, 4160 SW Greenleaf Drive, Portland, OR 97221. Tel: (503) 221-0465. Web: www.bluelightaudio.com.
