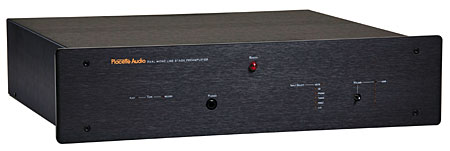

Placette Active Linestage preamplifier Specifications

Sidebar 1: Specifications

Description: Remote-controlled, unity-gain, line-stage preamplifier. Inputs: 5 unbalanced (RCA), 1 tape loop. Outputs: 2 unbalanced (RCA), headphone (½" phone jack). Input impedance: 18k ohms. Output impedance: 10 ohms. Volume attenuation: 2 ranges separated by 15dB, each 126 discrete steps.
Dimensions: 19" (483mm) W by 5" (127mm) H by 16.25" (413mm) D. Shipping weight: 33 lbs (15kg).
Serial Number Of Unit Reviewed: SN 0540.
Price: $6995. Approximate number of dealers: factory-direct only. Warranty: lifetime, parts & labor; 30-day refund policy; full retail credit when trading up from passive to active unit.
Manufacturer: Placette Audio, 682 Granite Way, Boise, ID 83712. Tel: (888) 765-3330, (208) 342-6141. Fax: (208) 333-0138. Web:

Placette Audio
682 Granite Way
Boise, ID 83712
(888) 765-3330
