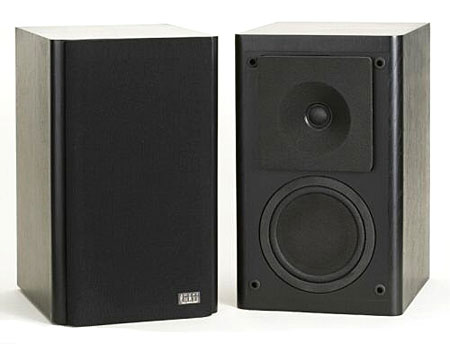

Phase Technology PC80 loudspeaker Specifications

Sidebar 6: Specifications

Description: Two-way, reflex-loaded, stand-mounted loudspeaker. Driver complement: one 6½" solid flat-piston driver, one 1" soft-dome tweeter. Crossover frequency: 2.1kHz (Mk.1), 2kHz (Mk.2). Crossover slopes: 24dB/octave acoustic. Frequency response: 55–20kHz ±3dB. Sensitivity: 88dB 2.83V/1m (Mk.1), 90dB/2.83V/1m (Mk.2). Recommended amplifier power: 25–100W. Nominal impedance: 6 ohms (Mk.1), 8 ohms (Mk.2).
Dimensions: 8 5/8" W by 13¼" H by 8¼" D (Mk.1), 9.5" W by 11" D by 15.5" H. (Mk.2). Shipping weight: 32 lbs (Mk.1), 36 lbs (Mk.2).
Finish: light oak, dark oak, walnut, black.
Serial numbers of units tested: 01296A&B (Mk.2).
Price: $650/pair (Mk.1), $699/pair (Mk.2); no longer available (2006). Approximate number of dealers: 180.
Manufacturer: Phase Technology, 6400 Youngerman Circle, Jacksonville, FL 32244. Distributor: Assured Systems, 6525 Corners Parkway, #212, Norcrosse, GA 30092. Tel: (404) 242-8300. Web: www.phasetech.com.
