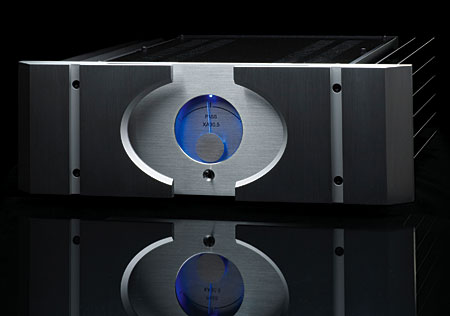

Pass Labs XA30.5 power amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state stereo power amplifier. Inputs: 1 pair unbalanced (RCA), 1 pair balanced (XLR). Outputs: 2 pairs binding posts. Rated power output: 30W into 8 ohms, 60W into 4 ohms (both 14.8dBW). Maximum output voltage: ±35V. Maximum output current: ±20A. Voltage gain: 26dB. Input sensitivity: 0.77V at 26dB gain. Frequency response: 1.5Hz–100kHz, –3dB at 1.5Hz, –2dB at 100kHz. Signal/noise: 150dB at full power. Distortion: 0.01% at 3W, 0.1% at 30W. Input impedance: 30k ohms balanced, 15k ohms unbalanced. Damping factor: 150 at 8 ohms. Slew rate: ±50V/µs. Power consumption: 238W.
Dimensions: 19" (485mm) W by 7" (180mm) H by 19" (485mm) D. Shipping weight: 75 lbs (34kg).
Serial Number Of Unit Reviewed: 18723.
Price: $5500. Approximate number of dealers: 20. Warranty: 3 years, transferable.
Manufacturer: Pass Laboratories, PO Box 219, 24449 Foresthill Road, Foresthill, CA 95631. Tel: (530) 367-3690. Fax: (530) 357-2193. Web: www.passlabs.com.
