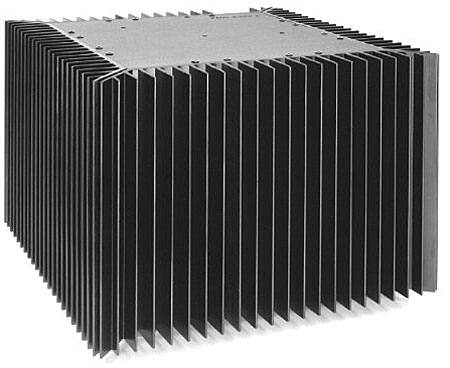

Pass Aleph 1.2 monoblock power amplifier Specifications

Sidebar 1: Specifications

Description: Single-ended solid-state monoblock power amplifier. Output power: 200W into 8 ohms (23dBW). Frequency response: –3dB at 100kHz. Voltage gain: 20dB balanced, 20dB or 26dB unbalanced. S/N Ratio: 74dB ref. 1W, 100dB ref. full power. Distortion: <1% THD at 1kHz. Output impedance: approximately 0.1 ohm. Input impedance: 10k ohms. Input Common Mode Rejection Ratio: 60dB.
Dimensions: 16.5" W by 10.5" H by 16.5" D. Weight: 130 lbs each.
Serial number of unit reviewed: 7006/7.
Price: $14,000/pair (1997); no longer available (2000 onward). Approximate number of dealers: 30.
Manufacturer: Pass Labs, P.O. Box 219, 24449 Foresthill Road, Foresthill, CA 95631. Tel: (916) 367-3690. Fax: (916) 367-2193. Web: www.passlabs.com.
