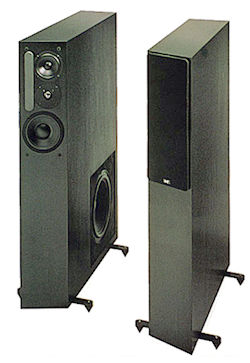

NHT 3.3 loudspeaker Specifications

Sidebar 2: Specifications

Description: Four-way, sealed-enclosure, loudspeaker system. Drive-units: 12" polymer-cone woofer, 6.5" polymer-cone midbass, 4" polymer-cone upper midrange, 1" fluid-damped aluminum-dome tweeter. Crossover frequencies: 100Hz (12dB/octave), 320Hz (12dB/octave), 3.5kHz (18dB/octave). Frequency response: 23Hz-26kHz ±2dB (in-room, 1m). Usable bass response: -6dB at 19Hz, in-room (-3dB at 22Hz, in-room). Sensitivity: 87dB/2.83V/1m. Nominal impedance: 6 ohms (4.3 ohms minimum, 10.5 ohms maximum, no phase angle greater than ±30 degrees). Amplifier requirements: 30-300W, 1000W peak.
Dimensions: 42" H by 7" W by 31" D, not including grille or stabilizers. Weight: 123 lbs each.
Serial numbers of units tested: none visible.
Price: $4000/pair (1993); no longer available (2004). Approximate number of dealers: 15.
Manufacturer: NHT, 527 Stone Road, Benicia, CA 94510. Tel: (800) 648-9993. Fax: (707) 748-5945. Web: www.nhthifi.com.

COMPANY INFO
NHT
527 Stone Road
Benicia, CA 94510
(800) 648-9993
