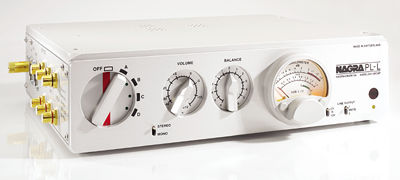

Nagra PL-L preamplifier Specifications

Sidebar 1: Specifications

Description: Tube line-level preamplifier. Tube complement: two 12AX7/ECC83, one 12AT7/ECC81. Inputs: 3 line-level (RCA), 1 single-ended (XLR). Outputs: 2 single-ended RCA, 1 single-ended XLR (transformer-coupled balanced XLR optional). Input voltage for 1V output: 250mV-25V, adjustable. Input impedance: >110k ohms. Output impedance: 60 ohms. S/N Ratio ref. 1V: >88dB A-weighted. Dynamic range: 100dB. Bandwidth: 20Hz-100kHz, +0/-1dB. Distortion: <0.02% (1V out, no load at 1kHz), <0.10% (2V out, 600 ohm load). Power consumption: 12V, 900mA.
Dimensions: 12.2" W by 3" H by 10" D. Net weight: 7 lbs.
Serial numbers of units reviewed: 5540331, 5440346.
Price: $6000. Remote control, add $800; balanced outputs, add $400. Approximate number of dealers: 18.
Manufacturer: Nagravision SA/Kudelski Group, Route de Genieve 22, CH-1033 Cheseaux, Switzerland. Tel: (41) (0)21-732-0101. Fax: (41) (0)21-732-0100. Web: www.nagra.com/nagraaudio. US distributor: Audiophile Systems, Ltd., 8709 Castle Park Drive, Indianapolis, IN 46256. Tel: (888) 272-2658, (317) 841-4100. Fax: (317) 841-4107. Web: www.audiophilesystems.com.
