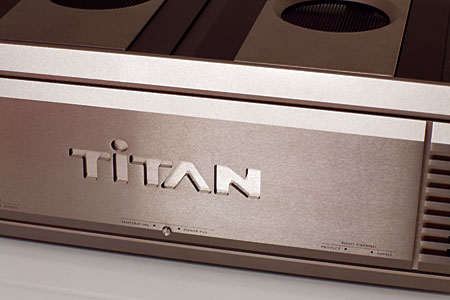

Musical Fidelity Titan power amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state, two-channel, fully balanced power amplifier with standalone power supply. Maximum power output: 1kWpc into 8 ohms (30dBW), 2kWpc into 4 ohms (30dBW), "just short of" 4kWpc into 2 ohms (30dBW). THD+noise:<0.008%, 20Hz–20kHz. Signal/noise:>126dB, A-weighted (no reference level quoted). Intermodulation distortion: not specified. Maximum output voltage: 90V RMS, 20Hz–20kHz; 254 peak–peak. Peak output current: limited to 100A peak–peak. Frequency response: 20Hz–40kHz,–0.5dB. Input impedance: 100k ohms (balanced, unbalanced). Input sensitivity for full power out into 8 ohms: 3V. Damping factor: 250.
Dimensions: Amplifier: 19" (483mm) W by 7.3" (185mm) H by 25" (635mm) D. Weight: 99 lbs (45kg). Power supply: 19" (483mm) W by 7.3" (185mm) H by 24.5" (615mm) D. Weight: 150 lbs (68kg).
Serial Number Of Unit Reviewed: TIG002 (JAN2009) (both chassis).
Price: $30,000. Approximate number of dealers: 70. Warranty: 5 years parts & labor.
Manufacturer: Musical Fidelity Ltd., 24/26 Fulton Road, Wembley, Middlesex HA9 0TF, England, UK. Tel: (44) (0)20-8900-2866. Fax: (44) (0)20-8900-2983. Web: www.musicalfidelity.com. US distributor: KEF America, Inc., 10 Timber Lane, Marlboro, NJ 07746. Tel: (732) 683-2356. Fax: (732) 683-2358. Web: www2.kef.com/us.

Company Info
Musical Fidelity Ltd.
US distributor: KEF America
10 Timber Lane
Marlboro, NJ 07746
(732) 683-2356
