MartinLogan Prodigy loudspeaker Specifications

Sidebar 1: Specifications

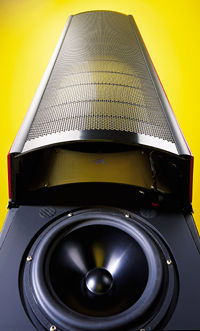

Description: Hybrid electrostatic/sealed-box moving-coil loudspeaker. Drive-units: 48" by 16" curvilinear electrostatic HF/midrange panel; 10" long-excursion, aluminum-cone woofer; 10" high-rigidity, high-excursion fiber-cone woofer with cast basket. Bass-control switch: +3dB at 50Hz. Crossover frequency: 250Hz. Crossover type: quasi-second-order, 12dB/octave. Frequency response: 28Hz-22kHz, ±3dB. Dispersion: horizontal, 30 degrees; vertical, 4' line source. Sensitivity: 91dB/2.83V/m. Nominal impedance: 4 ohms. Minimal impedance: 1 ohm at 20kHz. Recommended amplification: 80-300W.
Dimensions: 67" (1702mm) H by 161/2" (419mm) W by 28" (711mm) D. Weight: 133 lbs (29.5kg).
Finishes: light or black oak, maple, standard; natural cherry, dark cherry, dark oak, walnut, mahogany, piano black, aniline dyes (red, orange, yellow, green, blue, purple) available for $300-$500/pair.
Serial numbers of units reviewed: PEMAO16/17.
Price: $10,000/pair. Approximate number of dealers: 180. Warranty: 5 years with return of registration card, nontransferable.
Manufacturer: MartinLogan, Ltd., 2101 Delaware Street, Lawrence, KS 66046. Tel: (785)-749-0133. Fax: (785)-749-5320. Web: www.martinlogan.com.
