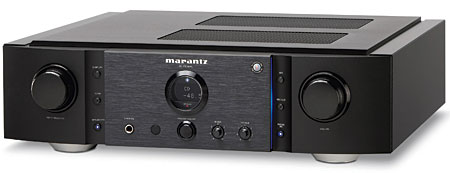

Marantz PM-KI-Pearl integrated amplifier Specifications
Description: Solid-state, remote-controlled, stereo integrated amplifier with 5 line inputs (2 associated with tape loops), 1 MM/MC phono input. Power output: 90Wpc into 8 ohms (19.5dBW), 140Wpc into 4 ohms (18.5dBW). Frequency response (CD, 1W, 8 ohm load): 5Hz100kHz, ±3dB. Output bandwidth (8 ohm load, 0.05% THD+N): 5Hz40kHz. Input sensitivity: CD/line, 240mV/20k ohms; phono (MC), 270µV/100 ohms; phono (MM), 2.7mV/47k ohms; P. Direct in: 1.7V/20k ohms. Pre-out output voltage/output impedance: 1.7V/220 ohms. Phono overload: MC, 15mV; MM, 150mV. THD: 0.05%, 20Hz20kHz, both channels driven into 8 ohms. Signal/noise (IHF-A, ref. 1W, 8 ohm load): CD/line (500mV input), 89dB; phono MC (0.5mV), 75dB; phono MM (5mV), 86dB. Power consumption: 220W.
Dimensions: 17.375" (445mm) W by 5" (130mm) H by 17.5" (450mm) D. Weight: 44.1 lbs (20kg).
Serial Number Of Unit Reviewed: 20000934000012.
Price: $3599. Approximate number of dealers: 100.
Manufacturer: Marantz America, Inc., 100 Corporate Drive, Mahwah, NJ 07430-2041. Tel: (201) 762-6500. Fax: (201) 762-6670. Web: us.marantz.com.
