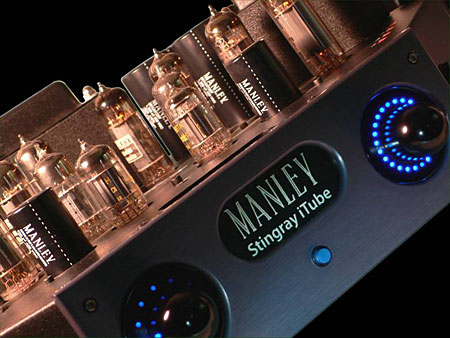

Manley Labs Stingray iTube integrated amplifier Specifications

Sidebar 1: Specifications

Description: Tubed, stereo integrated amplifier with 3 single-ended inputs, certified iPod dock, S-video output from iPod, subwoofer output, return loop, tape out, ¼" headphone jack, IR/RF remote control. Tube complement (hand-matched): eight EL84, two 6416, two 12AT7. Maximum output power (1.5% THD at 1kHz): 32Wpc into 5 ohms (UL mode), 18Wpc into 5 ohms (Triode mode). Frequency response: 15Hz–58kHz, –1dB. Maximum gain: 35dB. Volume-control range: 102dB (1dB/step when turned slowly). Input sensitivity (UL full power): 210mV in = 32W out into 5 ohms at maximum volume setting. Signal/noise: typically 72dB A-weighted ref. 1W output when set to 20dB gain. THD+N: typically –64dB, 1kHz at 1W output (measurement bandwidth 22Hz–22kHz).
Dimensions: 19" (490mm) W by 7.5" (190mm) H by 14" (360mm) D. Weight: 35 lbs (15.9kg).
Serial Number Of Unit Reviewed: MISTO38.
Price: $3400. Approximate number of dealers: 33. Warranty: 5 years.
Manufacturer: Manley Laboratories, Inc., 13880 Magnolia Avenue, Chino, CA 91710. Tel: (909) 627-4256. Fax: (909) 628-2482. Web: www.manleylabs.com.
