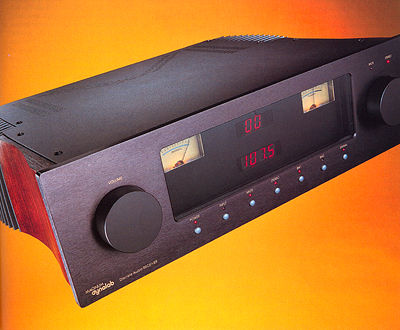

Magnum Dynalab MD 208 receiver Specifications

Sidebar 1: Specifications

Description: Remote-controlled solid-state receiver with digital volume control and discrete all-analog FM tuner section (digital readout), five line-level inputs, separate record output and pre-out. Amplifier section: Power output: 100Wpc into 8 ohms (20dBW), 160Wpc into 4 ohms (19dBW). Current output: 30A peak. THD: 0.15%. Damping factor: >100. Preamp section: Maximum output: 29V. Voltage gain: 34dB. Frequency response: 20Hz-20kHz, +0, -3dB. THD: 0.1%. S/N Ratio: 96dB. Tuner section: Usable sensitivity (stereo): 11.2dBf. Adjacent-channel attenuation: >12.0dB, 30.0dB narrow. Audio frequency response: 10Hz-17kHz, -1dB. THD (stereo): 0.18%. Capture ratio: >1.5dB. S/N Ratio: 80.0dB.
Dimensions: 19" W by 6" H by 15.5" D. Weight: 30 lbs.
Finish: Black (silver and gold available).
Serial number of unit reviewed: B271158.
Price: $2975. Approximate number of dealers: 65. Warranty: 5 years parts & labor.
Manufacturer: Magnum Dynalab Ltd., 8 Strathearn Avenue, Unit 9, Brampton, Ontario L6T 4L9, Canada. Tel: (800) 551-4130, (905) 791-5888. Fax: (905) 791-5583. Magnum Dynalab, c/o DRT Logistics Trans America CHB, 2775 Broadway, Buffalo, NY 14227-1043. Web: www.magnumdynalab.com.
