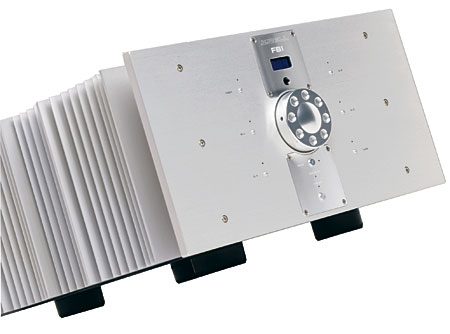

Krell FBI integrated amplifier Specifications

Sidebar 1: Specifications

Description: Two-channel, solid-state integrated amplifier with 1 pair CAST inputs via 4-pin bayonet connectors, 1 pair balanced via XLR connectors, 3 pairs single-ended via RCA connectors, 1 pair tape via RCA connectors. Speaker outputs: 4 on binding posts. Preamp output: 1 pair single-ended via RCA connectors. Preamplifier section: Frequency response: 20Hz–20kHz, +0.0/–0.05dB. Power amplifier section: Maximum output power: 300Wpc into 8 ohms (24.8dBW), 600Wpc into 4 ohms (24.8dBW), 1200Wpc into 2 ohms (24.8dBW). Maximum output voltage: 138V peak–peak. Voltage gain: 36.4dB. Signal/noise ratio: 108dB, A-weighted. THD: <0.04% at 1kHz, <0.3% at 20kHz. Input sensitivity: 0.741V RMS. Power consumption: 70W standby, 185W idle, up to 1800W operational.
Dimensions: 17.3" (445mm) W by 10.3" (265mm) H by 20.5" (525mm) D. Weight: 124 lbs (56kg) shipping, 104 lbs (47kg) net.
Serial Number Of Unit Reviewed: 514060200005.
Price: $16,500. Approximate number of dealers: 200. Warranty: 5 years parts & labor.
Manufacturer: Krell Industries, 45 Connair Road, Orange, CT 06477-3650. Tel: (203) 298-4010. Fax: (203) 891-2028. Web: www.krellonline.com.

COMPANY INFO
Krell Industries
45 Connair Road
Orange, CT 06477-3650
(203) 298-4010
