JBL Studio L880 loudspeaker Specifications

Sidebar 1: Specifications

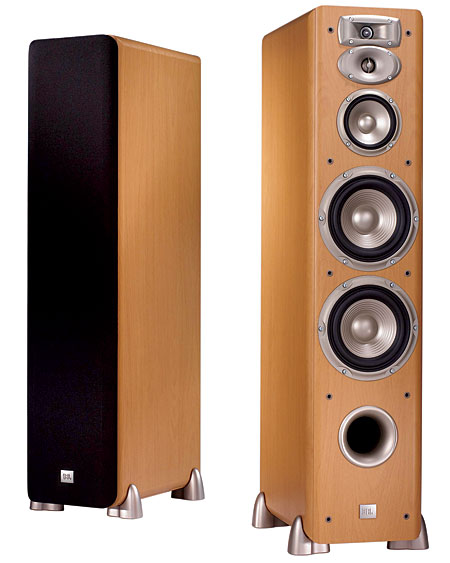

Description: Four-way, five-driver, reflex-loaded, floorstanding loudspeaker. Drive-units: ¾" (19mm) Mylar supertweeter in Bi-Radial horn; 1" (25mm) pure-titanium dome in EOS waveguide; 4" (100mm) PolyPlas-cone midrange unit with rubber surround, HeatScape motor structure; two 6" (150mm) PolyPlas-cone woofers with rubber surrounds, HeatScape motor structures. Crossover frequencies: 700Hz, 5kHz, 20kHz. Frequency response: 30Hz–40kHz, ±3dB. Sensitivity: 91dB (2.83V/m). Nominal impedance: 8 ohms. Maximum recommended amplification: 200W. Power handling: 100W continuous, 400W peak.
Dimensions: 39" (991mm) H by 8¾" (222mm) W by 14¾" (370mm) D, including feet. Weight: 54 lbs (24.5kg).
Finishes: black ash, cherry, beech.
Serial Numbers Of Units Reviewed: HAO245-01771/4.
Price: $1400/pair. Approximate number of dealers: 200.
Manufacturer: JBL Consumer Products, 250 Crossways Park Drive, Woodbury, NY 11797. Tel: (516) 255-4525. Fax (516) 682-3523. Web: www.jbl.com.

COMPANY INFO
JBL Consumer Products
250 Crossways Park Drive
Woodbury, NY 11797
(516) 255-4525
