Comments
dbowker's picture

Looks interesting, but it'd be a lot better to have what the equipement is, especially those funky speakers! Too bad it's a bit cluttered up on the lower shelves- the equipment looks quite elegant.

gogo's picture

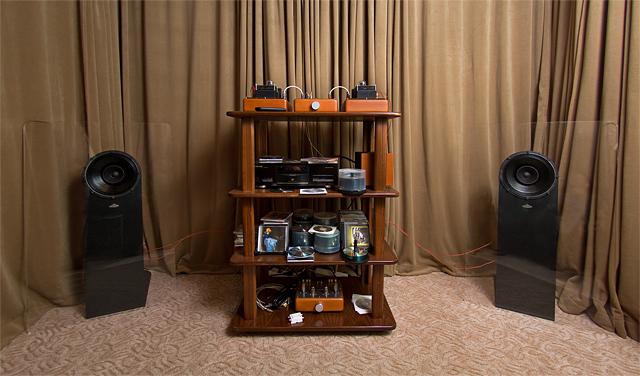

All the equipment is built by my self. Speaker are acrylic open baffle with custom made speakers, monoblocks are single ended with Russian 6S4S (analog of 6B4G), double-pole ("+" and "-") power supply (tube rectifiers) to avoid capacitors in the signal path, wiring is with DH Labs Insulated pure silver wire AWG-23 (0,6mm) and Jensen Round uninsulated pure silver wire AWG-18 (1mm). The block in the middle is volume regulator (24-stepped attenuator RFT with 1% metal film resisitors)and 4-inputs selector switch. Maximum output power before clipping is about 4,2W/ch. Frequency response is 18Hz-27000Hz, noise and hum are unmeasurable. The messing of the lower floors are normal - for every built amplifier I run a lot of CD`s to judge how good the sound is ;-)

  •
  •
