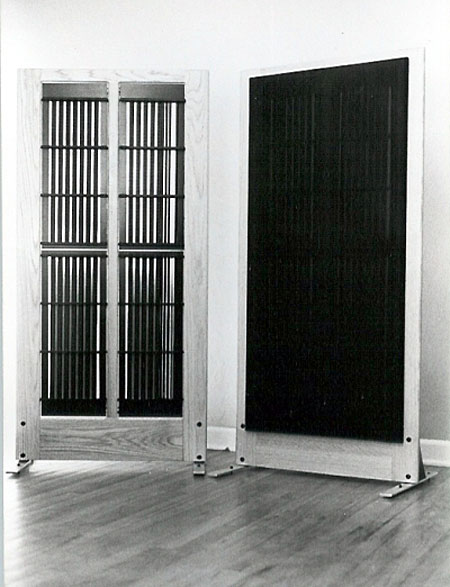

Eminent Technology LFT-III loudspeaker Specifications

Sidebar: Specifications

Description: Planar doublet loudspeaker system. HF level switchable with flat, –3, and –6dB positions. Diaphragm area: 580 sq.in. Foil thickness: 0.00033". Mylar thickness: 0.0005". Laminate adhesive thickness: 0.00015". Gap between conductors: 0.03". Peak-to-peak diaphragm displacement: 0.2". Frequency response: 35Hz–20kHz, ±4dB. Claimed phase response: ±20 degrees, 100Hz–31kHz. Sensitivity: 81dB/W/m. Diaphragm resonance: 34 & 38Hz. Power requirement: 50–200W. Impedance: 8–22 ohms. Maximum spl: 104dB at 1m.
Dimensions: 27" W by 54" H by 1" D (3" at base). Shipping weight: 95 lbs each.
Price: $2700/pair (1987); no longer available (2009). Warranty: 3 year parts, 1 year labor.
Manufacturer: Eminent Technology, Inc., 225 East Palmer Street, Tallahassee, FL 32301. Tel: (850) 575-5655. Fax: (850) 224-5999. Web: www.eminent-tech.com.

COMPANY INFO
Eminent Technology, Inc.
225 East Palmer Street
Tallahassee, FL 32301
(850) 575-5655
