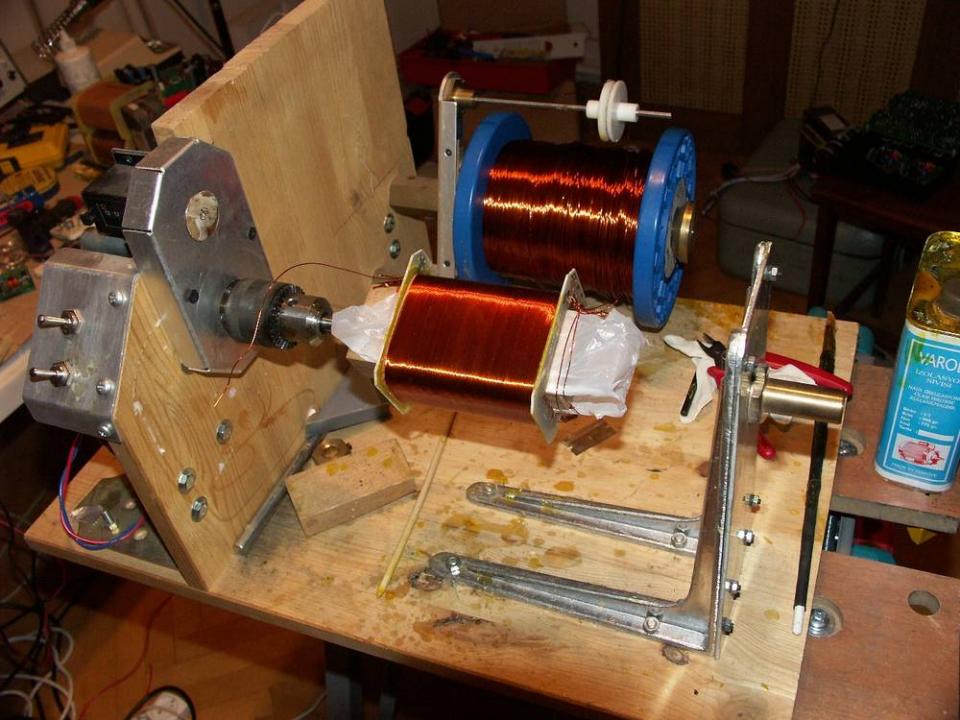

half section of a custom double c core output transformer on DIY winder,
Believe me this is hard work

Your rating: None Average: 1.7 (6 votes)
kaanseler's picture
double C core transformer
By kaanseler • Posted: Apr 20, 2007
Views: 8714
Dimensions: 1000x750
Size: 141kb
Filed Under: DIY Projects
Share | |
»
Comments
Jeff Wong's picture
Submitted by Jeff Wong on May 4, 2007 - 7:20am.

Wow... you wind your own trannies? How long does something like that take?

showflash's picture
Submitted by showflash on May 8, 2007 - 10:37pm.

Pretty cool. I bet you have a lot of friends!

kls's picture
Submitted by kls on May 10, 2007 - 1:19am.

You cant ask friends to wind for you or with you, unfortunately no way to wind up with friends with this hoby!

kls's picture
Submitted by kls on May 10, 2007 - 1:36am.

Transformer winding requires a lot of physical labor. With a primitve winding tool like I have got, it takes about 20 to 30 hours work each. The bobin end is also custom designed PCB enables soldering coil ends directly. The coil is 14 layer interleaved with very good primary to leakage inductance ratios.

  •
  •
