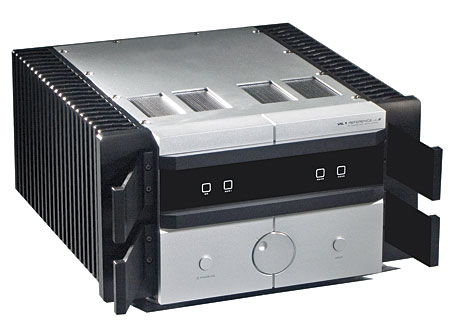

DK Designs VS.1 Reference Mk.III integrated amplifier Specifications

Sidebar 1: Specifications

Description: Two-channel solid-state integrated amplifier with tubes in low-level circuitry. Tube complement: two 6922. Maximum output power: 150Wpc into 8 ohms (21.8dBW), 300Wpc into 4 ohms (18.8dBW), both channels driven. Total harmonic distortion: <0.1% (1kHz) (level not specified). Frequency response: 20Hz–32kHz, ±1dB. Signal/noise: >90dB (reference level not specified). Channel separation: >60dB (1kHz). Input impedance: 47k ohms. Input sensitivity (for 1W into 8 ohms): line input, >200mV. Phono input: >4mV. Overload signal level: >2V.
Dimensions: 16.75" (430mm) W by 9.2" (235mm) H by 18.7" (480mm) D. Weight: 77 lbs (35kg).
Serial Number Of Unit Reviewed: 05AV01436.
Price: $3195. Approximate number of dealers: 73. Warranty: 5 years.
Manufacturer: DK Designs/LSA Group, 10111 Production Court, Louisville, KY 40299. Tel: (888) 671-8607. Fax: (502) 671-8608. Web: www.dkdesigngroup.com.

COMPANY INFO
DK Designs/LSA Group
10111 Production Court
Louisville, KY 40299
(888) 671-8607
