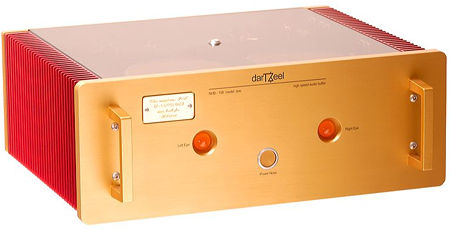

darTZeel NHB-108 Model One power amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state power amplifier. Inputs: unbalanced voltage-mode (RCA), unbalanced "Zeel" (BNC), balanced (XLR). Output power: 100W RMS into 8 ohms (20dBW), 160W RMS into 4 ohms (19dBW). Voltage gain: 26dB into 8 ohms. Input impedance: >100k ohms, 5Hz–200kHz (RCA); 50 ohms ("Zeel"). Output impedance: <0.33 ohm, 20Hz–20kHz. Frequency response: 10Hz–100kHz, +0/–0.5dB. THD: <1%, 7Hz–77kHz. Signal/Noise Ratio: >105dB(A) ref. rated power.
Dimensions: 17.25" (440mm) W by 6.75" (170mm) H by 13.25" (335mm) D. Weight: 65 lbs (30kg).
Serial number of unit reviewed: TZ-UA1081.004.
Price: $18,181. Approximate number of dealers: 8.
Manufacturer: darTZeel Audio SA High End Audio Manufacture, 2 Ch. Louis-Hubert, CH-1213 Petit-Lancy, Geneva, Switzerland. Tel: Sales & Administration, (41) 22-348-1721, (41) 22-793-8284; R&D & Production, (41) 22-793-8283. Web: www.darTZeel.com. US distributor: Blue Light Audio, 2725 SW Sherwood Drive, Portland, OR 97201. Tel: (503) 221-0465. Fax: (503) 221-0463. Web: www.bluelightaudio.com.

COMPANY INFO
darTZeel
US distributor: Blue Light Audio
2725 SW Sherwood Drive
Portland, OR 97201
(503) 221-0465
