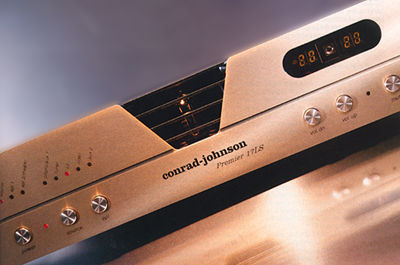

Conrad-Johnson Premier 17LS line-stage preamplifier Specifications

Sidebar 1: Specifications

Description: Single-chassis, remote-controlled, tubed line-stage preamplifier. Tube complement: four 6922 dual triodes. Inputs: five unbalanced (RCA), two processor loops. Outputs: two unbalanced (RCA), two processor loops. Frequency range: 2Hz->100kHz. Voltage gain: 26dB. Maximum output: 15V. Distortion (THD or IMD): <0.25% at 1.0V output. S/N Ratio: >100dB at <2.5V output. Output impedance: <850 ohms. Phase: inverts phase of all inputs, at main outputs.
Dimensions: 19" (480mm) W by 3.3" (80mm) H by 15.25" (390mm) D. Weight: 21 lbs (9.5kg).
Serial number of unit reviewed: 2751120.
Price: $4495. Approximate number of dealers: 85. Warranty: 3 years, limited, original purchaser (tubes excluded).
Manufacturer: Conrad-Johnson Design, Inc., 2733 Merrilee Drive, Fairfax, VA 22031. Tel: (703) 698-8581. Fax: (703) 560-5360. Web: www.conradjohnsondesign.com.
