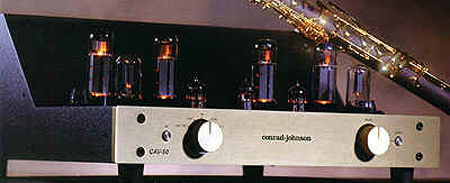

Conrad-Johnson CAV50 integrated amplifier Specifications

Sidebar 2: Specifications

Description: Integrated amplifier with passive input stage and tube output circuitry. Tube complement: 4x EL34 (output), 2x 6SN7 (driver), 2x 12AX7Q (phase splitter) and 1x 12AU7 (preamp output). Rated output power: 45W into 8 ohms (16.5dBW), 30Hz-15kHz, 1% THD (pentode/ultralinear); 22Wpc into 8 ohms (13.4dBW), 1.5% THD (triode). Input impedance: 50k ohms. Sensitivity: 500mV for full power. Measured output impedance: 0.4 ohms.
Weight: 40 lbs.
Serial number of unit reviewed: Not noted.
Price: 2495. Approximate number of dealers: 85.
Manufacturer: Conrad-Johnson, 2733 Merilee Drive, Fairfax, VA 22031-4407. Tel: (703) 698-8581. Fax: (703) 560-8581. Web: www.conradjohnson.com.

COMPANY INFO
Conrad-Johnson
2733 Merilee Drive
Fairfax, VA 22031-4407
(703) 698-8581
