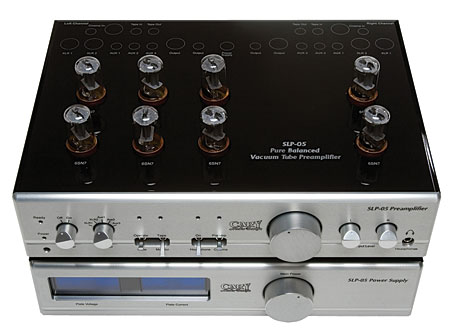

Cary Audio Design SLP 05 preamplifier Specifications

Sidebar 1: Specifications

Description: Line-level, remote-controlled stereo preamplifier with one tape loop, a Cinema Bypass mode, single-ended and balanced outputs, and a headphone output. Preamp inputs: 3 single-ended, 2 balanced. Input impedance: 50k ohms single-ended, 100k ohms balanced. Maximum gain: 10dB (16dB) single-ended, 8dB (12dB) balanced (see "Measurements" sidebar). Noise & hum: –90dB ref. full output. Frequency range: 5Hz–250kHz. Output impedance: 400 ohms.
Dimensions: Preamplifier: 17" (435mm) W by 6.25" (160mm) H by 12" (310mm) D. Weight: 16 lbs (7.25kg). Power supply: 17" (435mm) W by 4.5" (115mm) H by 12" (310mm) D. Weight: 19 lbs (8.6kg).
Serial Number Of Units Reviewed: 260163 (both).
Price: $7000. Approximate number of dealers: 82.
Manufacturer: Cary Audio Design, 1020 Goodworth Drive, Apex, NC 27539. Tel: (919) 355-0010. Fax: (919) 355-0013. Web: www.caryaudio.com.

Company Info
Cary Audio Design
1020 Goodworth Drive
Apex, NC 27539
(919) 355-0010
