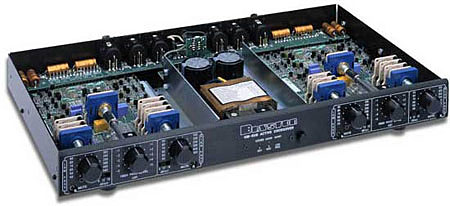

Bryston 10B electronic crossover Specifications

Sidebar 1: Specifications

Description: Active line-level crossover. Features: stereo two-way, monaural two-way, monaural three-way, balanced or unbalanced, independent high- and low-pass frequency selection, ±5dB of gain on high-pass section. Crossover frequencies: 70Hz, 100Hz, 140Hz, 200Hz, 300Hz, 450Hz, 700Hz, 1kHz, 1.4kHz, 2kHz, 3kHz, 4.5kHz. Custom frequencies available upon request. Filter slopes: 6/12/18dB/octave via front-panel settings. S/N ratio: 90dB. Distortion: 0.005%. Normal input level: 1V. Input impedance: 20k ohms.
Dimensions: 19" W by 17/8" H by 10" D. Weight: 12 lbs.
Prices (1994): 10B: $1195; 10B RBX (balanced): $1350; Linkwitz-Riley: $1395; Linkwitz-Riley balanced: $1495.
Price (2005): $2395: Approximate number of dealers: 60.
Manufacturer: Bryston Ltd., PO Box 2170, 677 Neal Drive, Peterborough, Ontario, Canada K9J 7Y4. Tel: (705) 742-5325. Fax: (705) 742-0882. Web: www.bryston.ca.

Company Info
Bryston Ltd.
PO Box 2170, 677 Neal Drive
Peterborough, Ontario
Canada K9J 7Y4
(705) 742-5325
