Avalon Eclipse loudspeaker Specifications

Sidebar 3: Specifications

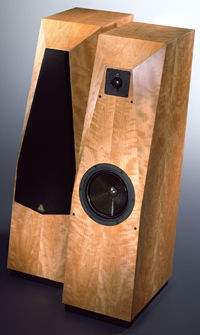

Description: Two-way, sealed-box, floor-standing loudspeaker. Drive-units: 1" titanium-dome tweeter, 8.5" Kevlar/Nomex honeycomb-cone midrange/woofer. System resonance: Q=0.5 at 42Hz. Crossover frequency: not specified. Crossover slopes: not specified. Frequency response: 45Hz-24kHz ±1.5dB (typical -3dB point in-room is said to be below 35Hz). Sensitivity: 86dB/W/m (2.83V). Nominal impedance: 6 ohms (minimum 5.5 ohms). Amplifier requirements: 30-200W.
Dimensions: 39" (991mm) H by 11" (280mm) W by 15" (381mm) D. Weight: 105 lbs (47.75kg) each.
Serial numbers of units tested: 2016/2017 (Atkinson pair).
Price (1991-1992): $5600/pair (Nextel finish), $7200/pair (wood veneer). Approximate number of dealers: 5. Warranty: 5 years.
Manufacturer: Avalon Acoustics Inc., 2800 Wilderness Place, Boulder, CO 80301. Tel: (303) 440-0422. Fax: (303) 440-4396. Web: www.avalonacoustics.com.
