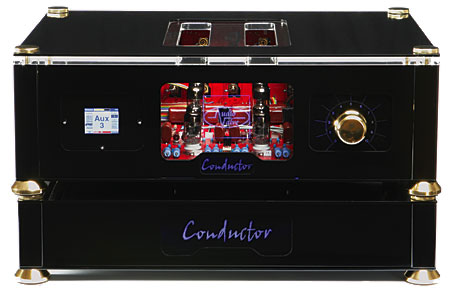

Audio Valve Conductor preamplifier Specifications

Sidebar 1: Specifications

Specifications: Tubed line preamplifier with separate power supply and remote control of volume and source selection. Tube complement: four 6922, four 6N6P/6H30. Inputs: 6 pairs, independently configurable for balanced or single-ended operation. Outputs: 4 pairs (2 XLR, 2 RCA), one Tape Out pair (RCA). Input impedance: 47k ohms. Output impedance: 300 ohms. Bandwidth: 5Hz–200kHz. Gain: 14dB.
Dimensions: Amplifier: 20" (508mm) W by 5.5" (140mm) H by 14.8" (380mm) D. Power supply: 20" (508mm) W by 3.1" (80mm) H by 14.8" (380mm) D. Combined weight: 55 lbs (25kg).
Serial Number Of Unit Reviewed: 160108US.
Price: $13,995. Approximate number of dealers: 12.
Manufacturer: Audio Valve, Umbachsweg 70, 34 123 Kassel, Germany. Tel: (49) 0561-701-3360, (49) 0160-910-77376. US distributor: Ray of Sound, 390 Cheerful Court, Simi Valley, CA 93065. Tel./Fax: (805) 444-6130. Web: www.rayofsound.com.

COMPANY INFO
Audio Valve
US distributor: Ray of Sound
390 Cheerful Court
Simi Valley, CA 93065
(805) 444-6130
