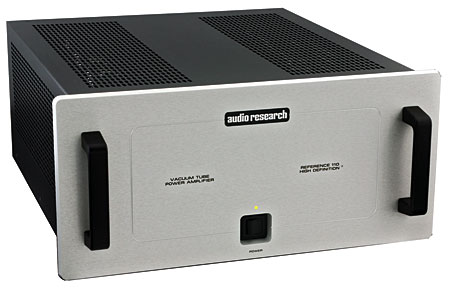

Audio Research Reference 110 power amplifier Specifications

Sidebar 1: Specifications

Description: Stereo tubed power amplifier with balanced inputs and 4, 8, and 16 ohm output transformer taps. Tube complement: 4 matched pairs of 6550C output tubes, 4 6H30 driver tubes. Maximum output power: 110Wpc continuous, 20Hz–20kHz at 1kHz with THD typically 0.3% at 110W, <0.03% at 1W; 120W at clipping (20.8dBW). Frequency response: 0.6Hz–90kHz, –3dB. Input sensitivity: 1.8V RMS balanced for rated output (24dB balanced gain into 8 ohms). Input impedance: 300k ohms balanced. Output polarity: non-inverting. Damping factor: approximately 12. Hum & noise: <0.2mV RMS, 106dB below rated output (IHF weighted, input shorted). Power requirements: 105–125VAC, 60Hz (210–250VAC, 50Hz), 630W at rated output, 800W maximum, 410W at "idle."
Dimensions: 19" (483mm) W by 8.75" (222mm) H by 19.5" (495mm) D. Handles extend 1.5" (38mm) forward. Weight: 67.4 lbs (30.7kg) net, 83 lbs (37.8kg) shipping.
Serial Number Of Unit Reviewed: 46403808.
Price: $9995. Approximate number of dealers: 50.
Manufacturer: Audio Research Corporation, 3900 Annapolis Lane North, Plymouth, MN 55447-5447. Tel: (763) 577-9700. Fax: (763) 577-0323. Web: www.audioresearch.com.

COMPANY INFO
Audio Research Corporation
3900 Annapolis Lane North
Plymouth, MN 55447-5447
(763) 577-9700
