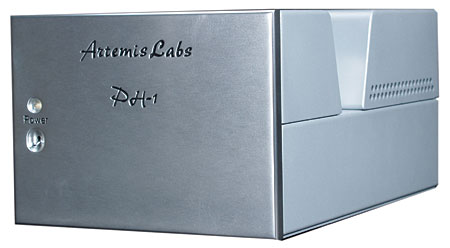

Artemis Labs PH-1 phono preamplifier Specifications

Sidebar 1: Specifications

Description: Tubed phono preamplifier. Tube complement: one 6N1P, two 12AX7, two 5687. Frequency response: 10Hz–42kHz, ±0.5dB. Input impedance: 47.5k ohms. Output Impedance: 1300 ohms at 1kHz. Voltage gain: 52dB. Maximum output voltage: 40V RMS. Total harmonic distortion: <0.2% at 1kHz, 2V RMS output.
Dimensions: 6.5" (165mm) H by 8.5" (220mm) W by 14.6" (375mm) D. Weight: 24 lbs (10.9kg).
Serial Number Of Unit Reviewed: 0007.
Price: $2890. Approximate number of dealers: 17.
Manufacturer: Artemis Labs, 260 Marvista Avenue, Pasadena, CA 91106. Web: www.artemislabs.com. US distributor: AYDN Audio, 679 Easy Street, Unit E, Simi Valley, CA 93065. Tel: (818) 216-7882. Web: www.aydn.com.

COMPANY INFO
Artemis Labs
US distributor: AYDN Audio
679 Easy Street, Unit E
Simi Valley, CA 93065
(818) 216-7882
