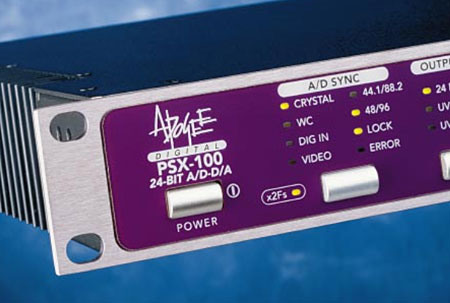

Description: 24-bit, two-channel, high-density A/D–D/A converter with UV22 processing. A/D sampling rate: 44.1–48kHz, 88.2–96kHz. D/A sampling rate: 32–106kHz. Frequency range: 10Hz–20kHz. A/D relative THD+N: –110dB (–0.01dBFS). Dynamic range: 116dB. Channel separation: left/right, 120dB (worst case). Analog inputs/outputs: one pair each on balanced XLR. Digital inputs /outputs: two AES/EBU, S/PDIF, ADAT (optical), TDIF (25-pin D). Power consumption: 25W.
Dimensions: 19" W by 1.75" H by 14.25" D. Weight: 12.5 lbs.
Serial number of unit reviewed: 2078.
Price: $3900. Approximate number of dealers: Not given.
Manufacturer: Apogee Electronics Corp., 3145 Donald Douglas Loop South, Santa Monica, CA 90405-3210. Tel: (310) 915-1000. Fax: (310) 391-6262. Web: www.apogeedigital.com.
