Aerial Acoustics 20T V2 loudspeaker Specifications

Sidebar 1: Specifications

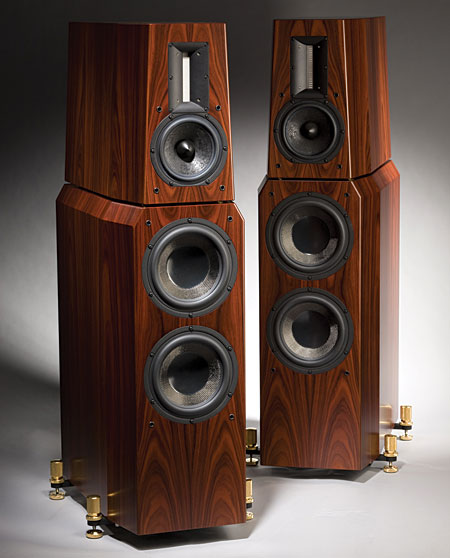

Description: Three-way, reflex-loaded, floorstanding loudspeaker. Drive-units: 4.1" by 0.375" aluminum ribbon tweeter, 7.1" carbon-fiber/pulp-cone midrange, two 9" carbon-fiber/Rohacell/glass-fiber–cone woofers. Crossover frequencies: 300Hz, 3.5kHz. Frequency response: 27Hz–30kHz, ±2dB (–8dB at 23Hz and 40kHz). Impedance: 4 ohms nominal, 2.8 ohms minimum. Sensitivity: 90dB/2.83V/m.
Dimensions: Overall: 47.0" (1194mm) H by 12.6" (320mm) W by 22.5" (572mm) D. Head cabinet: 15.4" (390mm) H by 10.7" (272mm) W by 22.5" (572mm) D. Bass cabinet: 29.1" (740mm) H by 12.6" (320mm) W by 22.5" (572mm) D. Adjustable base adds 1" (26mm) to total height. Weight: Overall: 270 lbs (122.7kg). Head cabinet: 80 lbs (36.4kg). Bass cabinet: 170 lbs (77.3kg). Base: 20 lbs (9.1kg).
Finishes: Gloss Graphite, Gloss Titanium, Natural Cherry, Santos Rosewood, Sapele Pommele, Tuscan Sycamore.
Serial Numbers Of Units Reviewed: 200271 & 2.
Price: $32,000/pair. Approximate number of dealers: 65. Warranty: 3 years parts & labor, transferable.
Manufacturer: Aerial Acoustics Corp., 100 Research Drive, Wilmington, MA 01887. Tel: (978) 988-1600. Fax: (978) 988-1661. Web: www.aerialacoustics.com.

Company Info
Aerial Acoustics Corp.
100 Research Drive
Wilmington, MA 01887
(978) 988-1600
