Aerial Acoustics 10T loudspeaker Specifications

Sidebar 1: Specifications

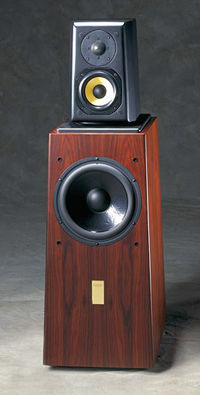

Description: Three-way, floorstanding, dynamic loudspeaker with reflex-loaded bass cabinet and separate tweeter/midrange module. Drive-units: 1" titanium-dome tweeter, 5.3" (136mm) dual Kevlar/epoxy-laminated-cone midrange unit, and 10.7" (271mm) bilaminate composite-cone woofer. Crossover frequencies: 360Hz, 2.7kHz. Crossover slopes: fourth-order, 24dB/octave, acoustic Linkwitz-Riley. Frequency response: 28Hz-20kHz, -2dB, -6dB at 23Hz. Sensitivity: 86dB/W/m (2.83V). Nominal impedance: 4 ohms, 3 ohms minimum. Amplifier requirements: 50W minimum, >100W recommended.
Dimensions: 41.5" H by 13.75" W by 19" D. Shipping weight: 190 lbs (shipped in three boxes).
Price: $7000/pair (optional stands cost $700/pair). Approximate number of dealers: 35.
Manufacturer: Aerial Acoustics Corporation, P.O. Box 81248, Wellesley Hills, MA 02181. Tel: (617) 235-7715. Fax: (617) 235-7715. Web: www.aerialacoustics.com.

COMPANY INFO
Aerial Acoustics
P.O. Box 81248
Wellesley Hills, MA 02181
(617) 235-7715
