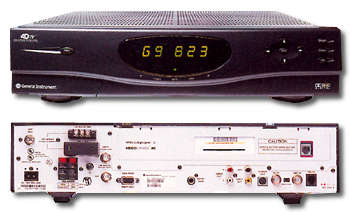

4DTV Satellite receiver SPECIFICATIONS

SPECIFICATIONS

4DTV analog/digital C-band IRD
Input frequency: 950-1550MHz
Input impedance: 75 ohms
Demodulator: QPSK
Video de-emphasis: 525-line CCIR Rec. 405-1
Video frequency response: 1.0kHz-4.2MHz, ±1dB (DCII video)
Output impedance: 75 ohms
Output level: 1V peak-to-peak into 75 ohms
Audio modes: digital stereo, NTSC subcarrier, VCII+digital
Audio frequency response: 20Hz-20kHz, ±1.5dB (digital audio)
Harmonic distortion: 0.4% max. @ 1kHz (digital audio)
S/N Ratio: 84dB min. (digital audio)
Dimensions: 17" by 4" by 13.5" (W by H by D)
Weight: 18 lbs.
Price: $1299 (receiver only) $2500-$3000 (full installation)
Manufacturer: General Instrument Corp., 6262 Lusk Boulevard, San Diego, CA 92121. Tel. (800) 225-9446. Fax (619) 404-3954 Web: www.4dtv.com
COMPANY INFO
General Instrument Corp.
6262 Lusk Boulevard
San Diego, CA 92121
(800) 225-9446
